Pebble Bar Chart#

The pebble bar chart is a logarithmic-density stacked bar chart where every data point is individually visible. Items stack from large squares at the bottom to tiny ones at the top, creating a natural visual hierarchy that shows both exact counts and relative magnitudes — like a histogram where every data point gets its own pixel.

Each bar gets a watercolor wash by default — a turbulence texture that gives the chart a hand-painted, organic look. Items with images sit on top of the wash; items without images are represented by the wash alone.

Every bar is drawn in Python (numpy and Pillow) to a single image: the layout, pictures, white outlines, rounded corners and watercolor all go into it. The same images feed three outputs:

Function	Output	Use it for
`pebble_bar_chart`	Interactive HTML page	Reports where items show tooltips and link to detail pages
`pebble_bar_figure`	matplotlib figure	Static PNG/PDF charts and notebooks
`write_pebble_assets`	One image per bar + `manifest.json`	Websites that place the chart in their own page with `pebble-view.js`

The browser never draws pebbles. The HTML page loads one image per bar and a small script (pebble-view.js) that maps the pointer to the item under it, so a chart with thousands of items loads as fast as one with ten.

Quick start#

from matviz import pebble_bar_chart

categories = [
    {"name": "trucks", "label": "Trucks", "color": "#b87200",
     "items": [{"id": str(i)} for i in range(87)]},
    {"name": "vans", "label": "Vans", "color": "#186b4e",
     "items": [{"id": str(i)} for i in range(54)]},
    {"name": "sedans", "label": "Sedans", "color": "#4e82b8",
     "items": [{"id": str(i)} for i in range(18)]},
]

pebble_bar_chart(
    categories,
    "fleet.html",
    title="Vehicle Fleet",
    subtitle="Each square = one vehicle",
    bar_width=150,
    log_base=1.1,
    item_offset=16,
    h_squeeze=0.7,
    bar_gap=21,
)

Open fleet.html in a browser to see the chart. The page is a single file: the bar images are embedded in it.

The same chart as a static matplotlib figure:

from matviz import pebble_bar_figure

fig = pebble_bar_figure(categories, bar_width=150, log_base=1.1,
                        item_offset=16, h_squeeze=0.7, bar_gap=21)
fig.savefig("fleet.png", dpi=144, bbox_inches="tight")

How it works#

Each bar is a vertical stack of rows. Row r (counting from 0 at the bottom) has floor(base^r) columns. Each cell is barWidth / base^r pixels wide and tall (square). The logarithmic stacking means:

Bottom rows: 1–2 large squares per row (prominent, individually visible)
Top rows: many tiny squares packed together (conveys volume)

The log_base parameter controls how fast columns multiply:

`log_base`	Behavior
√2 ≈ 1.414 (default)	Columns double every 2 rows — balanced
1.1	Slow growth — tall, narrow pyramids
2.0	Fast growth — short, wide pyramids

Item data#

Each item in a category can carry:

Key	Type	Description
`id`	str	Unique identifier
`label`	str	Tooltip text on hover
`link`	str	URL opened on click
`src`	str	Local image file drawn in the cell (relative to `image_dir`)
`image`	PIL.Image	An already-loaded image, instead of `src`

items = [
    {"id": "v001", "label": "Truck #1", "link": "https://example.com/v001",
     "src": "images/v001.png"},
    {"id": "v002", "label": "Truck #2"},  # represented by the watercolor wash
]
pebble_bar_chart(categories, "fleet.html", image_dir="data/")

Pictures are stretched to fill their square, given a white outline that follows the image’s alpha mask (outline_radius, default 1px) and rounded corners. Transparent cutouts (PNG with alpha) look best. Items without images are represented by the wash alone. Images must be local files: download remote images first, or pass image_loader= a function that returns a PIL image for an item. A missing file stops the build with the item’s id.

Watercolor styling#

Watercolor is on by default — the color you set on each category is used for the wash. You only need watercolor_color if you want the wash to be a different shade from the base color:

categories = [
    # Watercolor uses the color automatically
    {"name": "alpha", "label": "Alpha", "color": "#b87200",
     "items": [...]},

    # Override: base color is gray, but wash is amber
    {"name": "beta", "label": "Beta", "color": "#888",
     "watercolor_color": "#b87200",
     "items": [...]},

    # Opt out of watercolor entirely — flat solid squares
    {"name": "gamma", "label": "Gamma", "color": "#4e82b8",
     "watercolor_color": "",
     "items": [...]},
]

Key parameters#

Parameter	Default	Description
`bar_width`	120	Pixel width of each bar before squeeze
`log_base`	√2	Log base controlling density growth
`item_offset`	0	Invisible padding items to skip sparse bottom rows
`h_squeeze`	1.0	Horizontal squeeze factor (0–1)
`bar_gap`	8	Pixels between adjacent bars
`outline_radius`	1	White outline around image items (0 to disable)
`sort_desc`	True	Sort categories largest first
`show_count`	True	Show item count next to labels
`scale`	2	Image pixels per CSS pixel. 2 is sharp on most high-density screens; 3 is a little sharper on some phones at about twice the file size
`supersample`	4	Drawing resolution multiplier before shrinking to `scale`. Keeps the sub-pixel pebbles at the top of big bars visible as dots
`seed`	0	Fixes which pebble overlaps which and the watercolor texture. The same seed always gives identical images
`embed_images`	True	(`pebble_bar_chart`) Embed the bar images in the HTML. `False` writes them to `<name>_files/` beside the page
`image_dir`	None	Base folder for relative `src` paths
`open_browser`	False	Open the file in the default browser

Using the chart on your own website#

write_pebble_assets writes one image per bar and a manifest.json. Copy matviz/_assets/pebble-view.js into the site and draw the chart with it:

from matviz import write_pebble_assets

write_pebble_assets(categories, "site/static/chart/", bar_width=150,
                    log_base=1.1, item_offset=16, h_squeeze=0.7, bar_gap=21)

<div id="chart"></div>
<script src="pebble-view.js"></script>
<script>
  fetch("/static/chart/manifest.json").then(r => r.json()).then(data => {
    const chart = renderPebbleView(document.getElementById("chart"), data,
                                   { baseUrl: "/static/chart/" });
    // chart.yAxis can be moved outside a horizontal scroll container
    // to keep the axis pinned; chart.bars are the bar elements.
  });
</script>

The images are built once, offline. Rebuild them only when the data or chart options change.

Real-world examples#

Freer Gallery Japanese Ceramics#

251 objects from the Smithsonian — each pebble is a clickable thumbnail. View the live chart →

What Blocks Bike Lanes?#

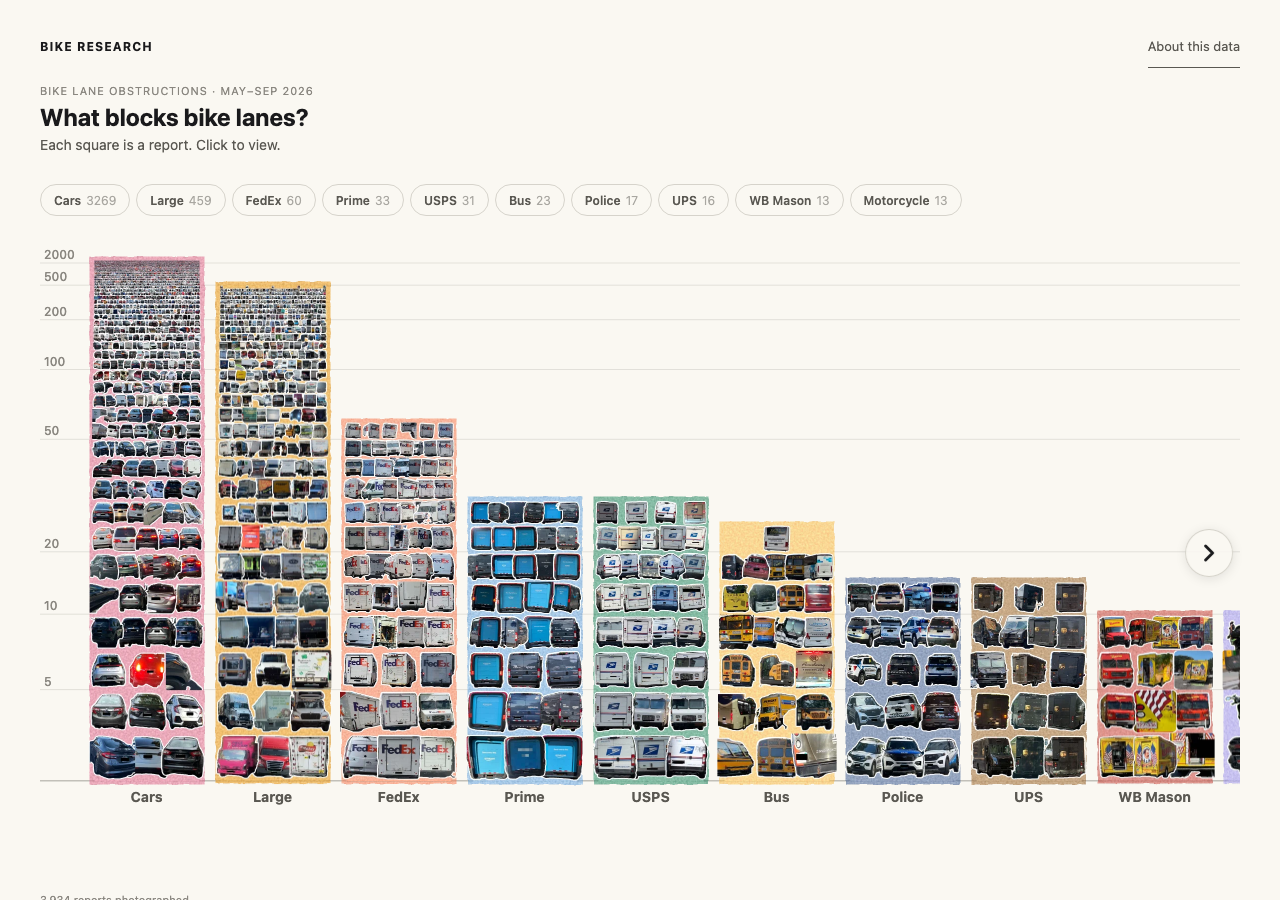

Urban infrastructure data visualized as a pebble bar chart. View the article →

Full example#

See examples/pebble_bar_example.py in the repository for a complete working example with multiple categories.

API reference#

matviz.pebble_bar.pebble_bar_chart(categories: Sequence[Dict[str, Any]], output: str | Path | None = None, *, title: str = '', subtitle: str = '', embed_images: bool = True, font_family: str = 'system-ui, -apple-system, sans-serif', extra_css: str = '', extra_js: str = '', open_browser: bool = False, **opts) → str[source]#

Generate an interactive pebble bar chart as an HTML page.

The bars are drawn in Python; the page only shows the bar images and maps the pointer to the item under it (tooltip from label or id, click opens link).

Parameters:

categorieslist of dict: Each category dict has name, label, color (also the default watercolor wash), optional watercolor_color (None or "" for flat squares without a wash), and items: dicts with id, label (tooltip), link (URL) and src (local image path) or image (PIL image).
outputstr or Path or None: Path to write the HTML file. If None, the HTML string is returned without writing to disk.
title, subtitlestr: Heading and description line.
embed_imagesbool: True (default) inlines the bar images as data URIs so the chart is a single file. False writes them to <output stem>_files/ beside the page (requires output).
font_family, extra_css, extra_js: Page styling and extra script run after the chart is drawn (chart holds the return value of renderPebbleView).
open_browserbool: Open the file in the default browser after writing.
**opts: Chart options for render_pebble_chart(): bar_width (default 120), log_base (√2), item_offset (0), h_squeeze (1.0), bar_gap (8), sort_desc, show_count, outline_radius (1), scale (2), supersample (4), seed (0), image_dir, …

Returns:

str: The HTML string. Also written to output if provided.

Examples

>>> categories = [
...     {"name": "trucks", "label": "Trucks", "color": "#b87200",
...      "items": [{"id": str(i)} for i in range(45)]},
...     {"name": "vans", "label": "Vans", "color": "#186b4e",
...      "items": [{"id": str(i)} for i in range(30)]},
... ]
>>> html = pebble_bar_chart(categories, "fleet.html",
...                         title="Vehicle Fleet", log_base=1.1,
...                         item_offset=16, h_squeeze=0.7)

matviz.pebble_bar.pebble_bar_figure(categories: Sequence[Dict[str, Any]], *, ax=None, figsize=None, label_rotation=0, **opts)[source]#

Draw a static pebble bar chart with matplotlib.

Takes the same options as render_pebble_chart(). Pass ax to draw into existing axes. One axes unit is one CSS pixel of the HTML chart. Returns the figure.

matviz.pebble_bar.write_pebble_assets(categories: Sequence[Dict[str, Any]], out_dir: str | Path, *, manifest_name: str = 'manifest.json', image_format: str = 'webp', quality: int = 90, item_fields: Sequence[str] = ('id', 'link', 'label'), **opts) → Dict[str, Any][source]#

Write one image per bar and a manifest for pebble-view.js.

Writes <out_dir>/<name>.<image_format> for each category and <out_dir>/<manifest_name>. Image paths in the manifest are relative to the manifest, so pass baseUrl (the manifest’s folder URL) to renderPebbleView. Other keyword arguments go to render_pebble_chart(). Returns the manifest.

matviz.pebble_bar.render_pebble_chart(categories: Sequence[Dict[str, Any]], *, bar_width: float = 120, log_base: float = 1.4142135623730951, item_offset: int = 0, h_squeeze: float = 1.0, gutter: float = 0, bar_gap: float = 8, sort_desc: bool = True, show_count: bool = True, outline_radius: float = 1, background: str = '#faf8f2', scale: int = 2, supersample: int = 4, seed: int = 0, image_dir: str | Path | None = None, image_loader=None, min_tick: int = 3, skip_ticks: Sequence[int] = (1000,)) → PebbleChart[source]#

Render every bar of a pebble chart (the shared step of all outputs).

Parameters:

categorieslist of dict: Each dict has name, label, color (flat fill and default watercolor), optional watercolor_color (falsy for no wash) and items. Items are drawn bottom-first in list order.
bar_width, log_base, item_offset, h_squeeze, gutter: Layout; see matviz.pebble_layout.bar_rows().
bar_gapfloat: CSS px between bars.
sort_descbool: Sort categories by item count, largest first.
show_countbool: Show each bar’s item count beside its label.
outline_radiusfloat: White outline around pictures, in CSS px (0 = none).
backgroundstr: Page colour the watercolor is blended onto.
scaleint: Image pixels per CSS px. 2 is sharp on most high-density screens; 3 is a little sharper on some phones at about twice the file size.
supersampleint: Drawing resolution multiplier before shrinking to scale; higher keeps more of the tiny top-row pebbles.
seedint: Seed for the overlap order and the watercolor texture. Each bar uses seed mixed with its name, so rebuilding gives the same images.
image_dirpath, optional: Base directory for relative item src paths.
image_loadercallable, optional: image_loader(item) -> PIL.Image to load pictures some other way.
min_tick, skip_ticks: Y-axis ticks: 1-2-5 values from min_tick up, minus skip_ticks.

matviz.pebble_render.render_bar(items: Sequence[Dict[str, Any]], *, bar_width=120, log_base=1.4142135623730951, item_offset=0, gutter=0, h_squeeze=1.0, color='#888888', watercolor_color=None, background='#faf8f2', image_loader: Callable[[Dict[str, Any]], Image] | None = None, image_dir=None, outline_radius=1.0, corner_radius=None, scale=2, supersample=4, seed=0, wash_seeds=None) → PebbleBar[source]#

Draw one pebble bar to an RGBA image.

Parameters:

itemslist of dict: Bar items, bottom (largest) first. Items with src (a local file path, resolved against image_dir) or image (a PIL image) are drawn as pictures. Without a picture, an item is a solid color square when there is no watercolor and is left to the wash otherwise.
bar_width, log_base, item_offset, gutter, h_squeeze: Layout, as in matviz.pebble_layout.bar_rows().
colorstr: Fill for items without a picture (flat mode only).
watercolor_colorstr or None: Colour of the watercolor wash behind the bar; falsy for no wash.
backgroundstr: Page colour the wash is blended onto (the bar itself is opaque).
image_loadercallable, optional: image_loader(item) -> PIL.Image. Defaults to default_image_loader() with image_dir.
outline_radiusfloat: White outline around each picture’s alpha, in CSS px (0 = none).
corner_radiusfloat or callable, optional: Corner radius in CSS px, or f(size). Default max(1, min(3, size * 0.05)).
scaleint: Output pixels per CSS px (2 = sharp on most high-density screens).
supersampleint: Extra drawing resolution before shrinking to scale.
seedint: Seed for which pebble overlaps which; the same seed gives the same image.
wash_seeds(int, int), optional: Noise seeds for the wash grain and edge warp. Default derived from seed.

Returns:

PebbleBar

matviz.pebble_layout.bar_rows(n_items, *, bar_width=120, log_base=1.4142135623730951, item_offset=0, gutter=0, h_squeeze=1.0) → List[Row][source]#: Rows holding at least one real item, from the bottom up.
